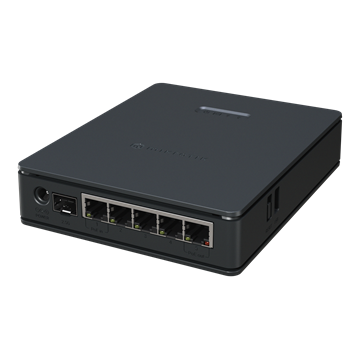

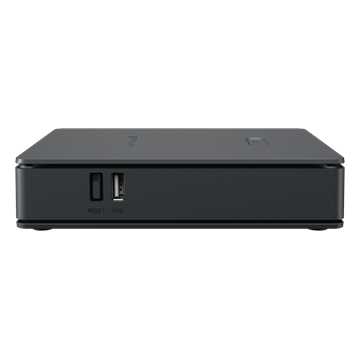

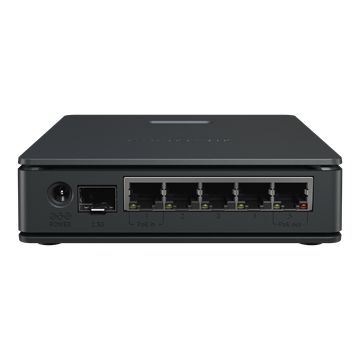

MikroTik hAP ax S wifis router

Name: MikroTik hAP ax S wifis router
Brand: MikroTik
SKU: E62IUGS2AXD5AXT
Availability: OutOfStock

Cikkszám: E62IUGS2AXD5AXT

Gyártói cikkszám: E62IUGS-2AXD5AXT

Garancia: 24 hónap

Gyártó: MikroTik

hAP ax S router, 802.11ax, 5x gigabit RJ45 port, 1xSFP 2.5G, 1xPoE ki

MikroTik hAP ax S wifis router

Leírás
Technikai adatok
Hasonló termékek
Kapcsolódó termékek
Kapcsolódó hírek
Kapcsolódó letöltések
Kapcsolódó csomagok

Leírás

Specifications

Details
Product code	E62iUGS-2axD5axT
Architecture	ARM 32-bit
CPU	EN7562CT
CPU core count	2
CPU nominal frequency	950 MHz
Switch chip model	EN7523
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	512 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
IPsec hardware acceleration	Yes

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate	574 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz	5.5
Wireless 2.4 GHz chip model	MT7916
Wireless 2.4 GHz generation	Wi-Fi 6
Wireless 5 GHz Max data rate	1800 Mbit/s
Wireless 5 GHz number of chains	3
Wireless 5 GHz standards	802.11a/n/ac/ax
Antenna gain dBi for 5 GHz	8.07
Wireless 5 GHz chip model	MT7976
Wireless 5 GHz generation	Wi-Fi 6
WiFi speed	AX2400

Ethernet

Details
10/100/1000 Ethernet ports	5
Number of 1G Ethernet ports with PoE-out	1

Fiber

Details
SFP ports	1 (2.5G supported)

Peripherals

Details
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-28 V
Max power consumption	34 W
Max power consumption without attachments	11 W
PoE in	Passive PoE
Cooling type	Passive
PoE in input Voltage	18-28 V

PoE-out

Details
PoE-out ports	Ether5
PoE out	Passive PoE
Low voltage PoE-Out current limit	0.6 A
Max total out (A)	0.6 A
Total output current	0.6
Total output power	16.8

Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	20

Other

Details
CPU temperature monitor	Yes

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	24	-100
11MBit/s	24	-94
6MBit/s	23	-96
54MBit/s	21	-80
MCS0	22	-96
MCS7	20	-75
MCS9	19	-70
MCS11	15	-67

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	23	-96
54MBit/s	21	-81
MCS0	23	-96
MCS7	20	-77
MCS9	20	-72
MCS11	18	-69

Included parts

24V 1.5A power adapter
