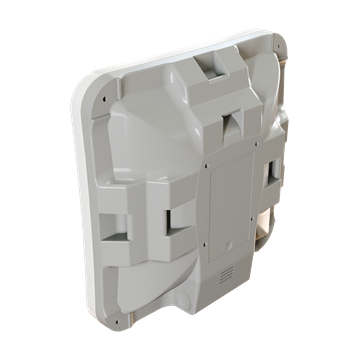

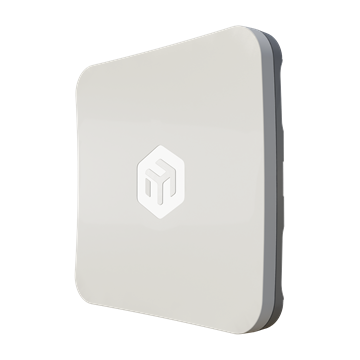

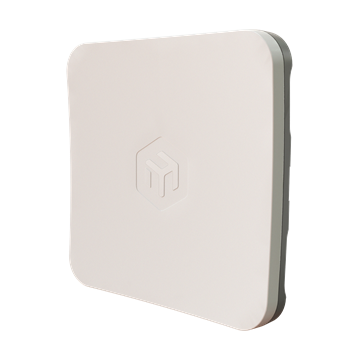

MikroTik SXTsq 5 ax (WiFi6), 5Ghz CPE antenna

Specifications

Details
Product code	SXTsq-5axD
Architecture	ARM 64bit
CPU	IPQ-5010
CPU core count	2
CPU nominal frequency	800 MHz
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	256 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C

Powering

Details
Number of DC inputs	1 (PoE-IN)
Max power consumption	6 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	12-28 V

Wireless specifications

Details
Wireless 5 GHz Max data rate	1200 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac/ax
Antenna gain dBi for 5 GHz	16
Wireless 5 GHz chip model	QCN-6102
Wireless 5 GHz generation	Wi-Fi 6

Ethernet

Details
10/100/1000 Ethernet ports	1

Other

Details
CPU temperature monitor	Yes

Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	55

Wireless specifications

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	24	-96
54MBit/s	21	-80
MCS0	24	-96
MCS7	20	-75
MCS9	18	-70
MCS11	16	-67
2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s
11MBit/s
6MBit/s
54MBit/s
MCS0
MCS7
MCS9
MCS11

Included parts

•
  24V 0.38A power adapter
•
  Gigabit PoE injector
•
  Hose clamp 1
