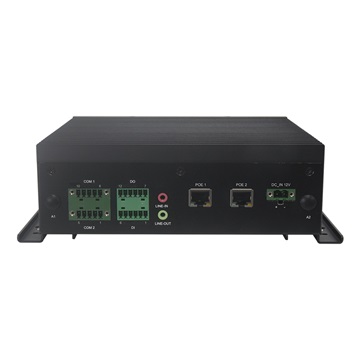

Lanner ipari minősítésű AI következtető 5G rendszerekhez

Name: Lanner ipari minősítésű AI következtető 5G rendszerekhez
Brand: Lanner
SKU: EAII131
Availability: OutOfStock

Cikkszám: EAII131

Gyártói cikkszám: EAI-I131

Garancia: 36 hónap

Gyártó: Lanner

NVIDIA Jetson Orin NX (70 TOPs) 8GB LPDDR5 memória, 1xM.2 2280 M key (PCIex4) 128GB NVMe SSD (Jetpack 5.1.3), 2xGbE PoE LANs, 1xM.2 B 304(5)2 5G-hez sub6, 1xM.2 2230 E WiFi-hez, 2xCOM port RS232/422/485,1xCAN 2.0 A/B (opcionális)

Lanner ipari minősítésű AI következtető 5G rendszerekhez

Lanner ipari minősítésű AI következtető 5G rendszerekhez

Leírás
Technikai adatok
Hasonló termékek
Kapcsolódó termékek
Kapcsolódó hírek
Kapcsolódó letöltések
Kapcsolódó csomagok

Leírás

NVIDIA® Jetson Orin NX/Nano
AI Performance Up To 100 TOPS
Up To 1024-core NVIDIA CUDA GPU With 32 Tensor Cores
Support For 4G LTE/ 5G Sub6 & WiFi
2x GigE IEEE 802.3 af PoE/ at PoE+ LAN, 2x USB 2.0, 1x HDMI, 2x RS232/422/485 (Optional COM2 For CAN 2.0)
Support super mode Nvidia SDK 6.2
TrustZone With Security Boot & OS Protected

Specifications

Processor System
CPU	8-core 2.0GHz/6-core 1.5GHz NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU
GPU	Up To 1024-core NVIDIA Ampere Architecture GPU With 16~32 Tensor Cores
Memory
Technology	128-bit/64-bit LPDDR5
Capacity	16/8/4 GB (By SKU)
Ethernet
Speed	10/100/1000 Mbps
Interface	2x GbE RJ45
PoE	GbE PoE LANs With Support For IEEE 802.3af/at PoE(+) Under Max. 30W (Surge Protection Up To 2KV)
Storage
Type	M.2
Installation	1x M.2 2280 M-Key NVMe (PCIe x4) default 128G
I/O
COM	2x RS232/422/485
CAN	Optional COM2 For CAN 2.0
Audio	Line-in, Line-out
USB	2x USB2.0
Display	1x HDMI 2.0A/B @ 4Kp60 With Screw Lock
DIO	4x DI (Support PNP/ NPN / Dry Contact) & 4x DO (Support Dry / Sink), IEC 61121-2, 24V With Maximum 200mA
Button
Reset	1x Button
Power	1x Button
Fanless
	Yes (Fanless Design With Corrugated Aluminum)
Expansion Interface
M.2	1x M.2 304(5)2 B-Key Socket (USB 3.0) or 5G Sub-6 With Dual SIM Socket Reserved 1x M.2 2230 E-Key Socket (USB2.0 & PCIe) for WiFi (By SKU)
Power
Power Type	ATX
Power Supply Voltage	System Power Input Rated DC 12V
Connector	1x 3-pin Terminal Block
Cooling
Processor	Passive CPU Heatsink
Environment
Operating Temperature	-40°C~70°C
Storage Temperature	-40°C~80°C
Relative Humidity	5%~90% Operating; 5%~95% Non-Operating
Miscellaneous
Internal RTC with Li Battery	Yes
TPM	Onboard TPM 2.0
Mechanical
Dimension (W x D x H)	201 x 65 x 196 mm
Weight	2.6 KG
Mounting	Wallmount (Optional VESA mount), Chassis With Intrusion Design
Driver Support
Linux	Linux Open Source On NVIDIA SDK
Security
TrustZone & Security Boot	U-bootloader & OS Protected
Certification
EMC	CE/FCC Class A, UL

Order Information

EAI-I131A	IPC With NVIDIA Jetson Orin NX (100 TOPs) With 16GB LPDDR5 Memory, 1x M.2 2280 M-Key (PCIe x4) with NVMe 128G, 2x GbE PoE LAN, 1x M.2 304(5)2 B-Key For 5G Sub6, 1x M.2 2230 E-Key For WiFi, 2x COM For RS232/422/485, 1x CAN 2.0 (Optional)
EAI-I131B	IPC With NVIDIA Jetson Orin NX (70 TOPs) With 8GB LPDDR5 Memory, 1x M.2 2280 M-Key (PCIe x4) with NVMe 128G, 2x GbE PoE LAN, 1x M.2 304(5)2 B-Key For 5G Sub6, 1x M.2 2230 E-Key For WiFi, 2x COM For RS232/422/485, 1x CAN 2.0 (Optional)
EAI-I131C	IPC With NVIDIA Jetson Orin Nano (40 TOPs) With 8GB LPDDR5 Memory, 1x M.2 2280 M-Key (PCIe x4) with NVMe 128G, 2x GbE PoE LAN, 1x M.2 304(5)2 B-Key For 5G sub6, 1x M.2 2230 E-Key For WiFi, 2x COM For RS232/422/485, 1x CAN 2.0 (Optional)
EAI-I131D	IPC With NVIDIA Jetson Orin Nano (20 TOPs) With 4GB LPDDR5 Memory, 1x M.2 2280 M-Key (PCIe x4) with NVMe 128G, 2x GbE PoE LAN, 1x M.2 304(5)2 B-Key For 5G sub6, 1x M.2 2230 E-Key For WiFi, 2x COM For RS232/422/485, 1x CAN 2.0 (Optional)
