HARDWARE FEATURES
Interface	One 10/100M Ethernet Port(RJ45)
Button	Range Extender Button Reset Button
External Power Supply	12VDC / 1A
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antenna	2*4dBi Detachable Omni Directional (RP-SMA)
Dimensions ( W x D x H )	6.9*4.7*1.1 in.(174*120*28.8mm)

WIRELESS FEATURES
Frequency	2.4~2.4835GHz
Signal Rate	11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
EIRP	< 20 dBm (EIRP)
Reception Sensitivity	270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
Wireless Modes	Range Extender, AP Mode
Wireless Functions	WMM(Wi-Fi Multimedia) Wireless MAC Address Filtering Enable/Disable Wireless Radio Enable/Disable Wireless SSID Broadcast AP Isolation Wireless Statistic
Wireless Security	64/128/152-bit WEP WPA / WPA2 WPA-PSK / WPA2-PSK

OTHERS
Certification	CE, FCC, RoHS

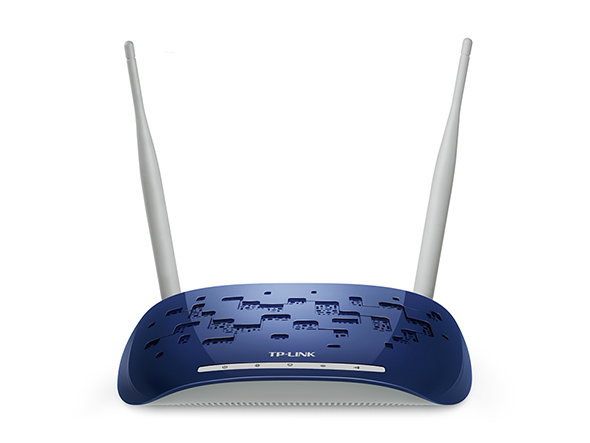

Package Contents	Wireless N Range Extender TL-WA830RE 2 Detachable Omni directional antennas RJ-45 Ethernet Cable Power supply unit Resource CD Quick Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC OS, NetWare, UNIX or Linux
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
