HARDWARE FEATURES
Interface	4 10/100/1000Mbps LAN Ports 1 10/100/1000Mbps WAN Port 1 USB 2.0 Port
Button	WPS Button Power On/Off Button: Reset Button
External Power Supply	12VDC / 1.5A
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
Antenna	3 detachable dual band antennas (RP-SMA)
Dimensions ( W x D x H )	9.2x6.1x1.4 in.(234x155x36mm)

WIRELESS FEATURES
Frequency	2.4-2.4835GHz 5.180-5.240GHZ 5.745-5.825GHz
Signal Rate	Up to 450Mbps
EIRP	<20dBm
Reception Sensitivity	270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
Wireless Functions	Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security	64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK

SOFTWARE FEATURES
WAN Type	Dynamic IP/Static IP/PPPoE/ PPTP(Dual Access)/L2TP(Dual Access)/BigPond
DHCP	Server, Client, DHCP Client List, Address Reservation
Quality of Service	WMM, Bandwidth Control
Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	DynDns, Comexe, NO-IP
VPN Pass-Through	PPTP, L2TP, IPSec
Access Control	Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security	DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding
USB Sharing	Support Samba/FTP/Media Server/Printer Connection
Management	Access Control Local Management Remote Management

OTHERS
Certification	CE, FCC, RoHS

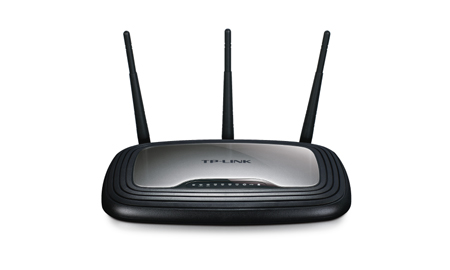

Package Contents	TL-WR2543ND 3 detachable dual band antennas Power supply unit Resource CD Quick Installation Guide
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
